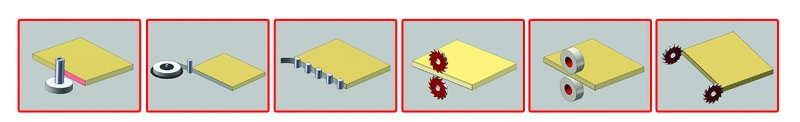

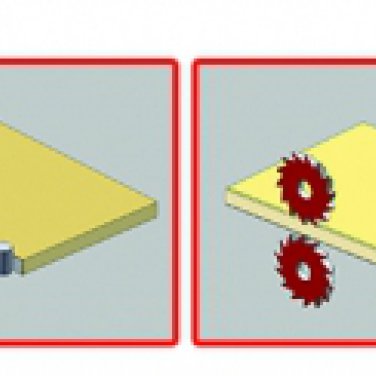

The machine is designed for edge sticking of straight panels ,it is with automatic panel feeding and direct covering with glue for edges with thickness from 0.4 mm to 3 mm and panel thickness from 10 to 45 mm .Automatic cutting of edge’s extras at both panel sides and removing the surplus parts of the edge up and down of the workable panel. There are digital indicators of fence, of milling cutting device, of feeder for height adjustment, electronic regulation of glue temperature with microprocessor and digital thermometer , movable widen base for edge sticking of wider panels, compressed air regulator.
| Working table dimensions | 1400x600mm |
| Front and back table extension | 400x380mm |
| Workpiece thickness | 10-45mm |
| Min. working desk dimensions L x W | 300x90mm |
| Auto feeding speed | 5 m/min |
| Diameter of edge holder | 600mm |
| 2pcs. of trimming cutters | Ø80xØ20x2,4/3, Z=16 |
| Trimming cutters speed | 9000 rpm |
| 2pcs. of milling cutters | Ø75mm, Z=4, R3 |
| Milling cutters speed | 9000 rpm |
| Suction hood diameter | 120 mm |
| Total power of heating cartriges | 1,26 kW |
| Total installed power | 2,4kW |
| Voltage | 3x400V |
| Air pressure | 6,5 Bar |
| Weight | 410 kg |
| Demanded area | 2x3,5m |
Edge bander EBM350
Edge bander EBM350
Edge bander EBM350
